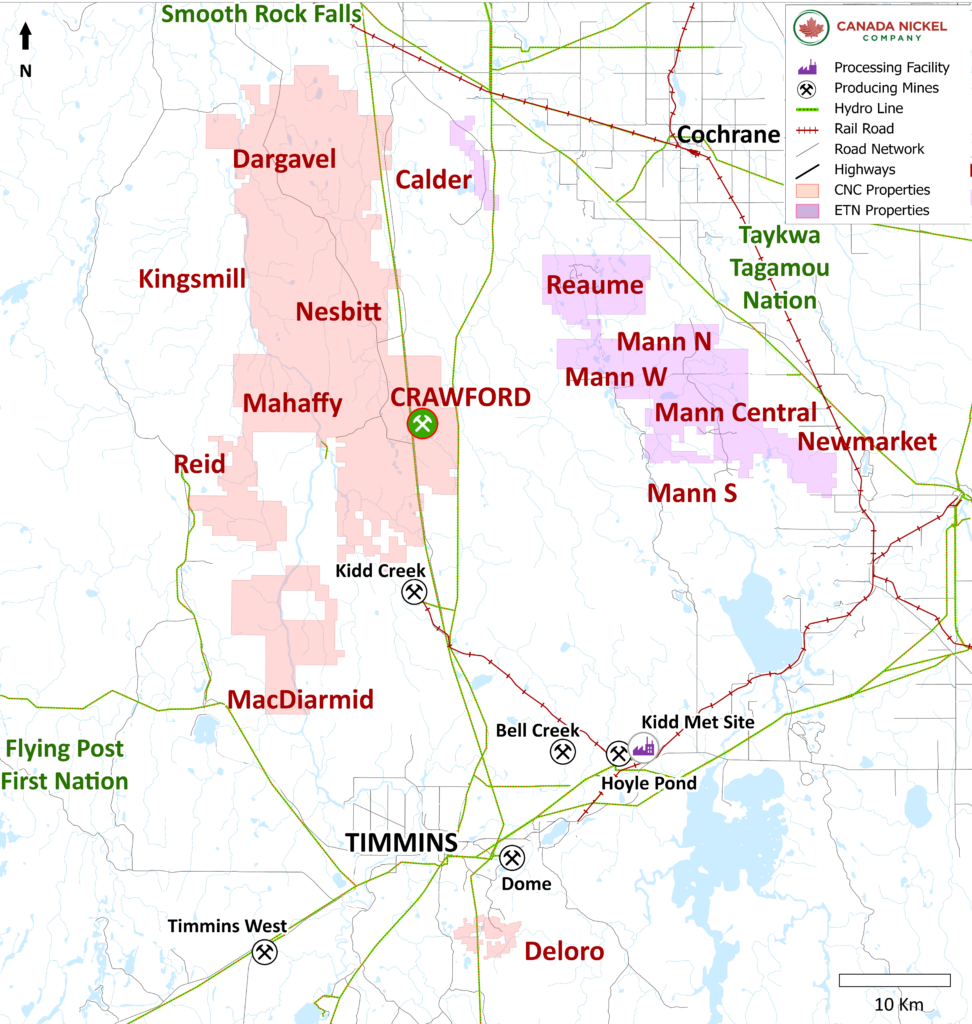

- Located just 22 km east of Crawford Nickel sulphide deposit, 21 km south of Cochrane. Year-round access and infrastructure.
- More than twice the size of Crawford based on the outline of its geophysical target of 3.4 km2 (vs 1.6 km2 at Crawford)

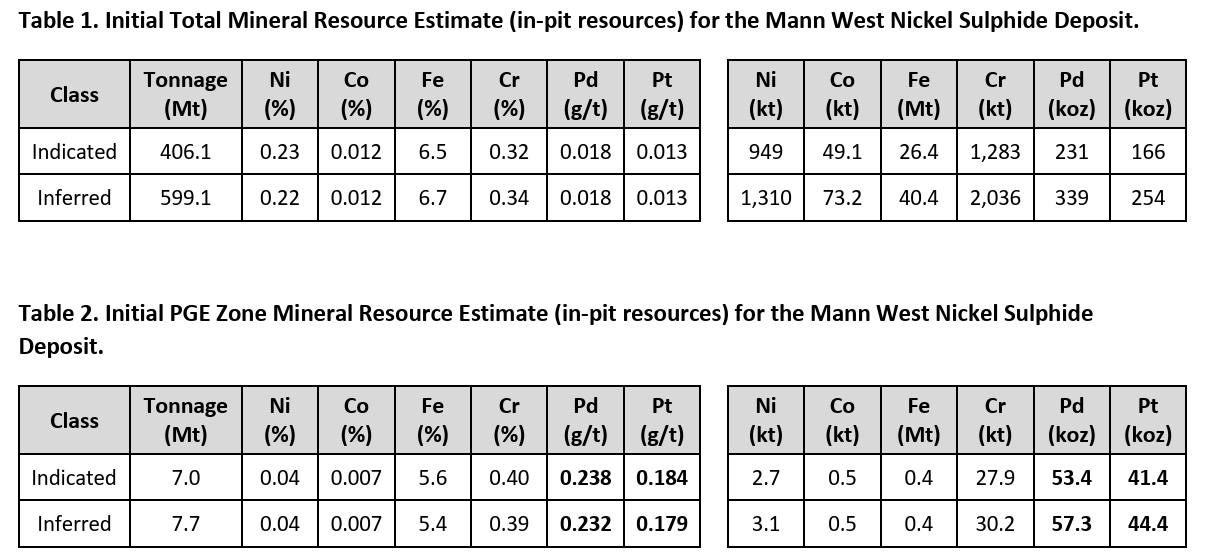

- Initial Resource larger than Initial Crawford Resource, with an additional Indicated resource of 397 Koz Pt+Pd and Inferred resource of 593 Koz of Pt+Pd
- Mann West, 40 holes drilled to date. 17,703 m.

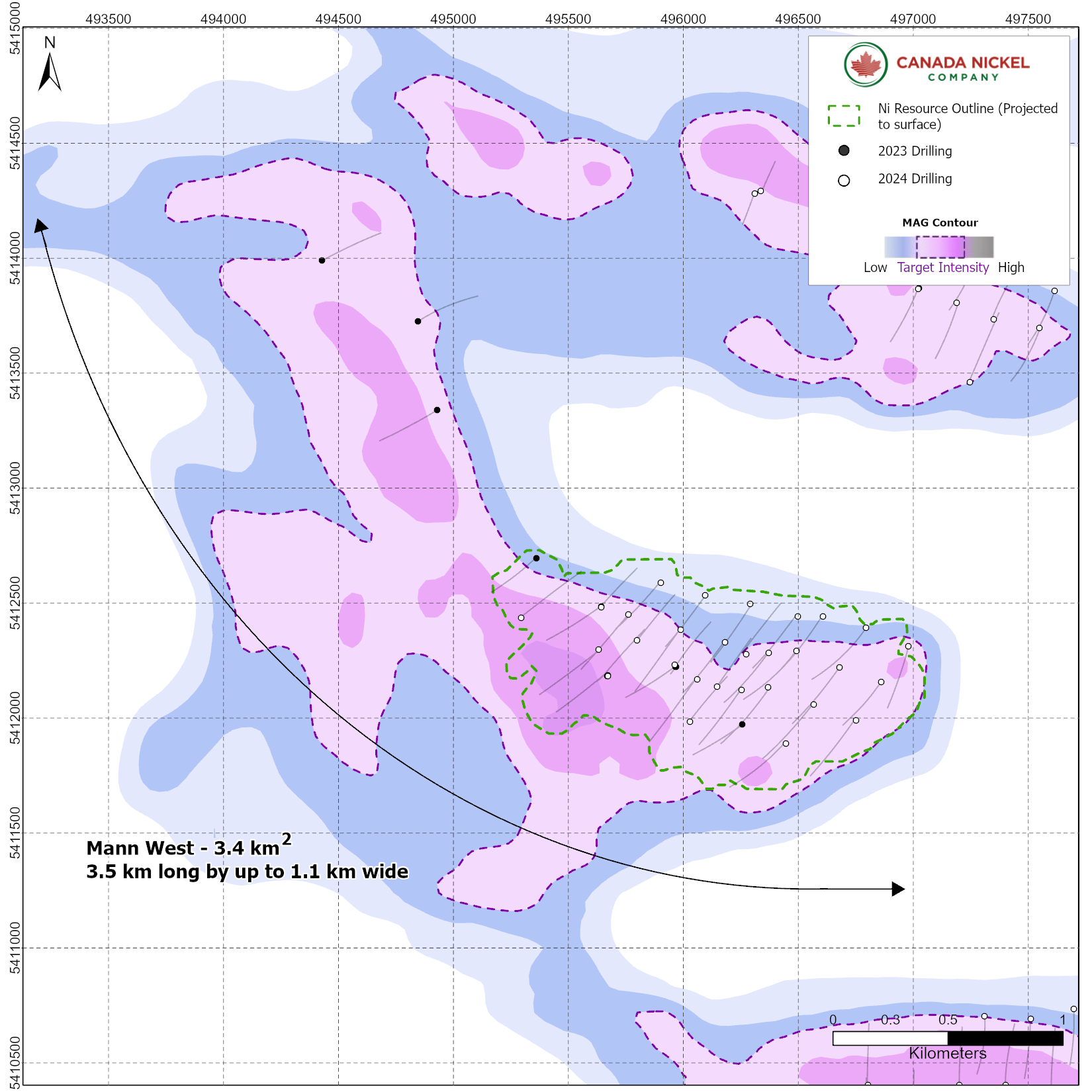

- Strong mineralization across the strike length of the resource at approximately 1.9 km long by 0.8 km wide, extending 0.5 km deep, open at depth.
- 28 drillholes in 2024 with intervals greater than 0.30% nickel
*Totals may not add due to rounding

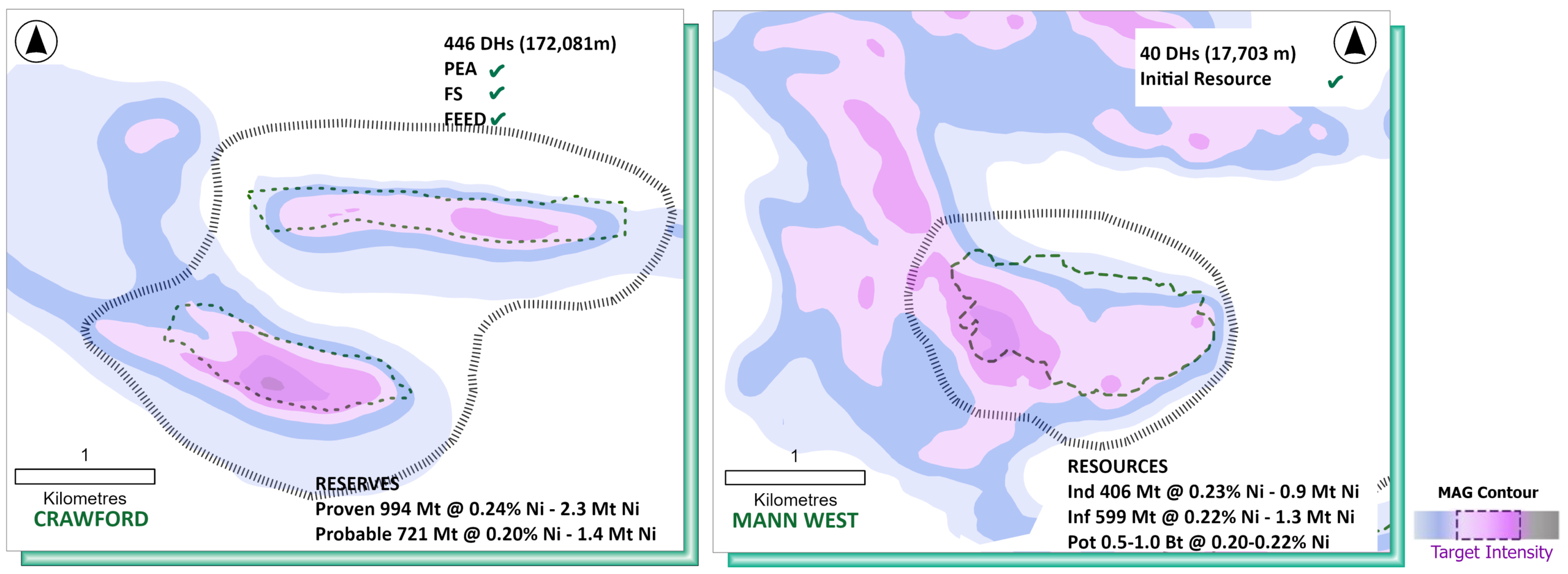

In Pit Resources size comparison between Mann and Crawford deposits
- Lithology at Mann West is primarily peridotite with minor dunite and lesser pyroxenite. Nickel sulphide mineralization is hosted in serpentinized peridotite and dunite. PGEs are associated with pyroxenite horizons “reefs”.
- Mineralogy at Mann West has been characterized by analyzing 530 samples with TIMA (Tescan integrated Mineral Analyzer).
- Mineralogy confirms Mann West has Mg Serpentine and brucite averages similar to those of Crawford samples, while having almost 3X more awaruite (Fe-Ni alloy) with equivalent heazlewoodite as the predominant sulphide mineral
